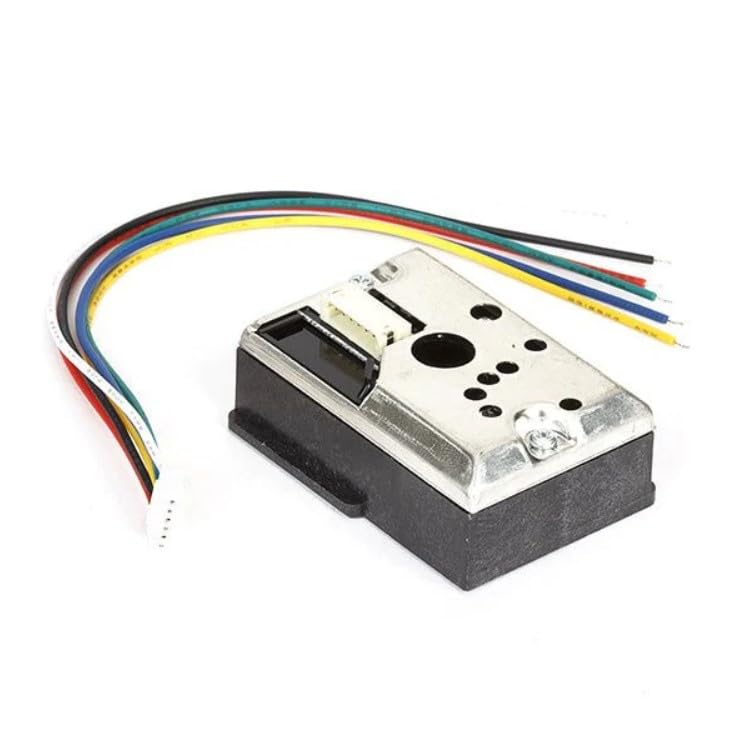

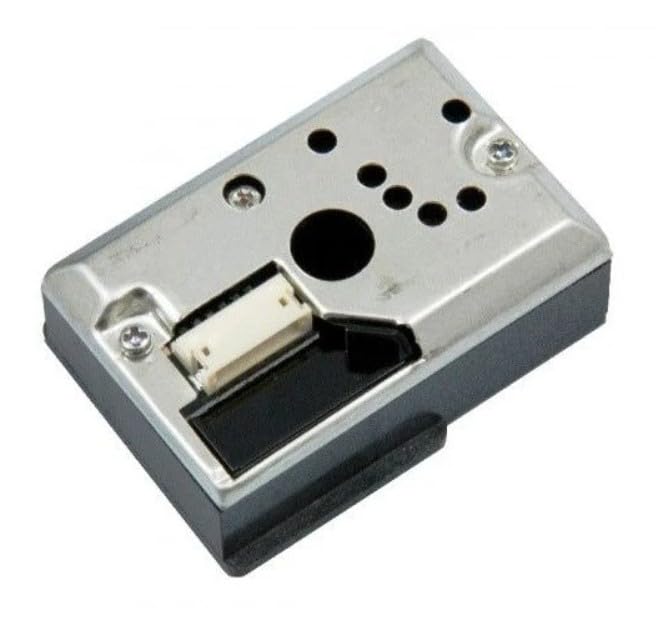

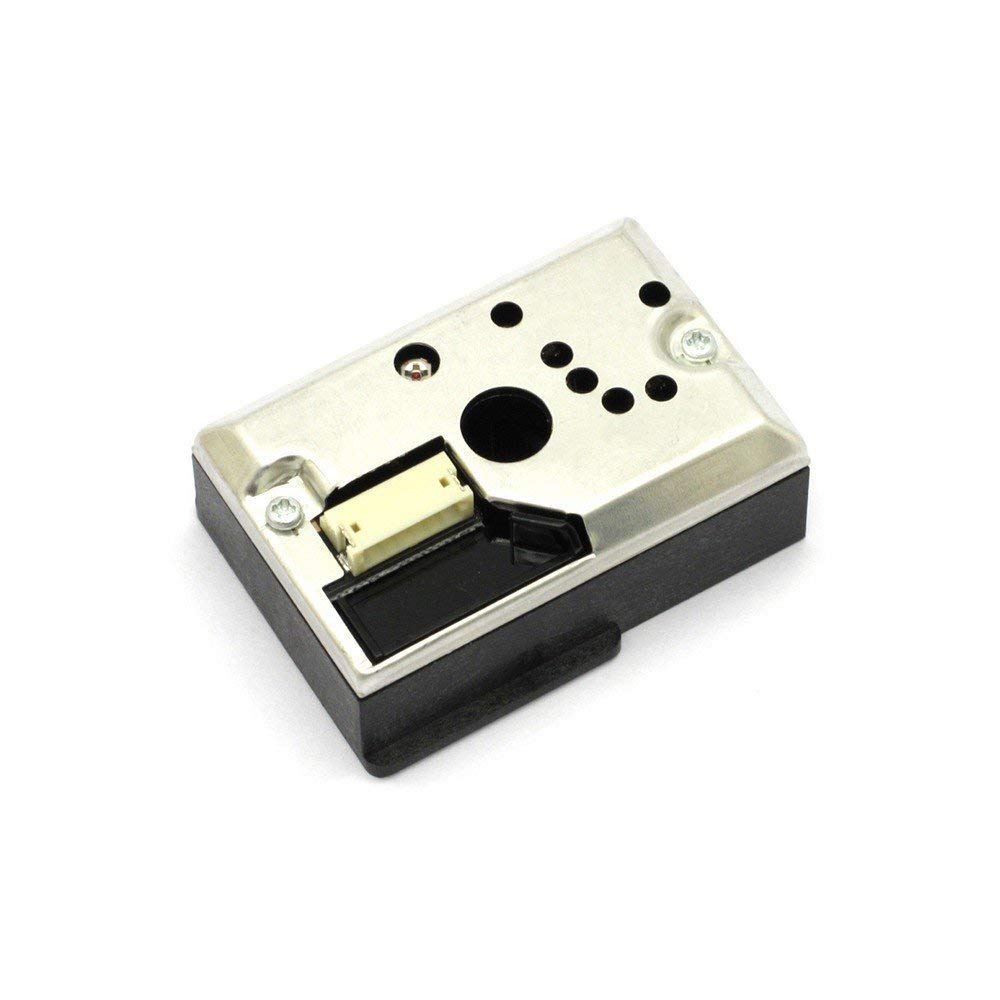

GP2Y1010AU0F Optical Dust Sensor Module – Air Quality & Particulate Detection
Description:
GP2Y1010AU0F Dust Sensor Module is an optical air quality sensor designed to detect fine particles such as cigarette smoke, dust, and pollen. It uses an infrared LED and phototransistor setup to measure the light reflected off airborne particulates, providing an analog output proportional to the concentration of dust in the air.
Features:
1. Optical Dust Detection
2. Analog Voltage Output
3. High Sensitivity to Fine Particles
4. Low Current Consumption
5. Fast Response Time
6. Compact and Lightweight Design
7. Air Inlet Slit Design
8. Easy to Interface
9. Reliable for Indoor Air Quality Projects

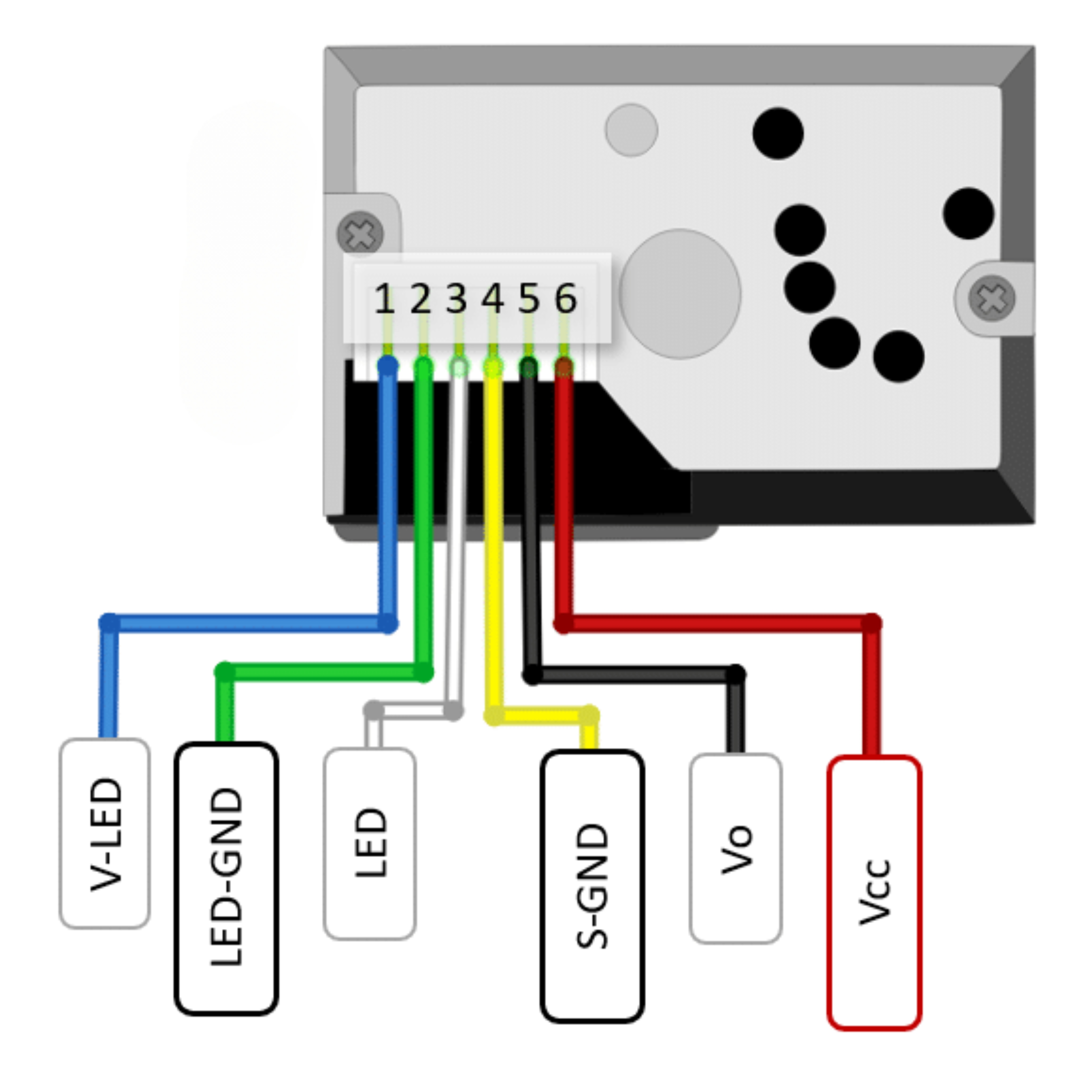

Diagram:
Specifications:
| Detection Principle | Light scattering |
| Operating Voltage | 3.3V to 5V DC |
| Output | Analog voltage |
| Current Consumption | ~20mA |
| Accuracy | ±20% |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -20°C to +70°C |
| Output Voltage Range | 0-3.3V |
| Storage Temperature Range | -20°C to +70°C |
| Dimensions | 42.5mm x 24mm x 14.5mm |
| Weight | ~10g |
