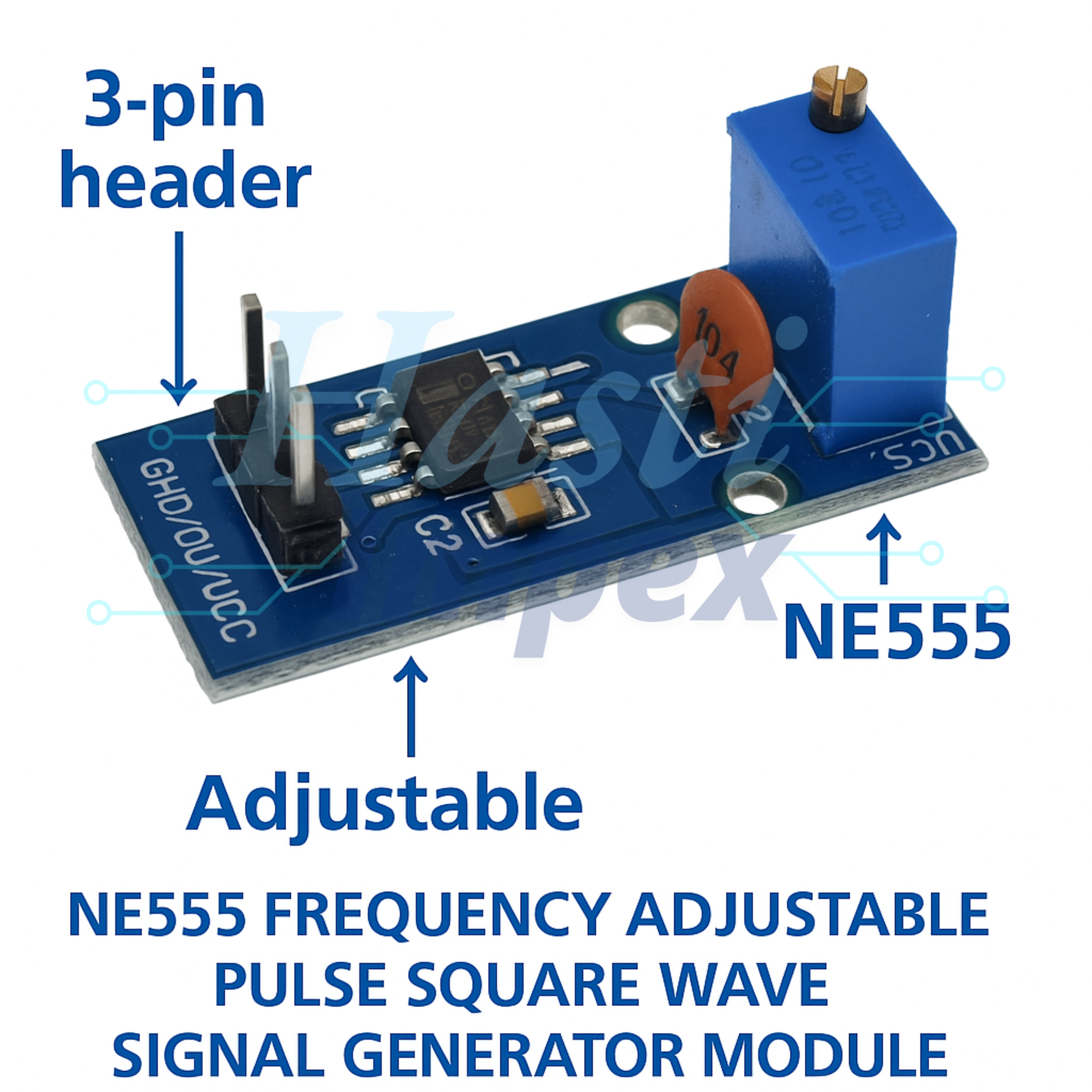

NE555 Frequency Adjustable Pulse Square Wave Signal Generator Module
Description:
NE555 Frequency Adjustable Pulse Square Wave Signal Generator Module is a versatile and compact signal generation module based on the classic NE555 Timer IC. This module allows you to generate a pulse signal or square wave of adjustable frequency, making it suitable for a wide variety of applications, including signal processing, frequency modulation, timer circuits, and waveform generation.The NE555 Timer IC has been a cornerstone of electronics for decades, providing reliable and precise timing and waveform generation. This signal generator module provides a simple way to integrate the NE555 into your projects for creating customizable pulse signals with variable frequency.
Features:
1. Adjustable Frequency Range
2. Stable Output Signal
3. Versatile Applications
4. Easy Integration
5. Low Power Consumption
6. Adjustable Duty Cycle
7. Compact Design
Diagram:
Specifications:
| IC Used | NE555 Timer IC |
| Frequency Range | 1Hz to 100kHz |
| Voltage Supply | 5V to 12V DC |
| Output Type | Digital square wave output |
| Current Consumption | 10mA to 20mA |
| Module Size | ~40mm x 25mm |
| Output Voltage Level | 0V to VCC |
