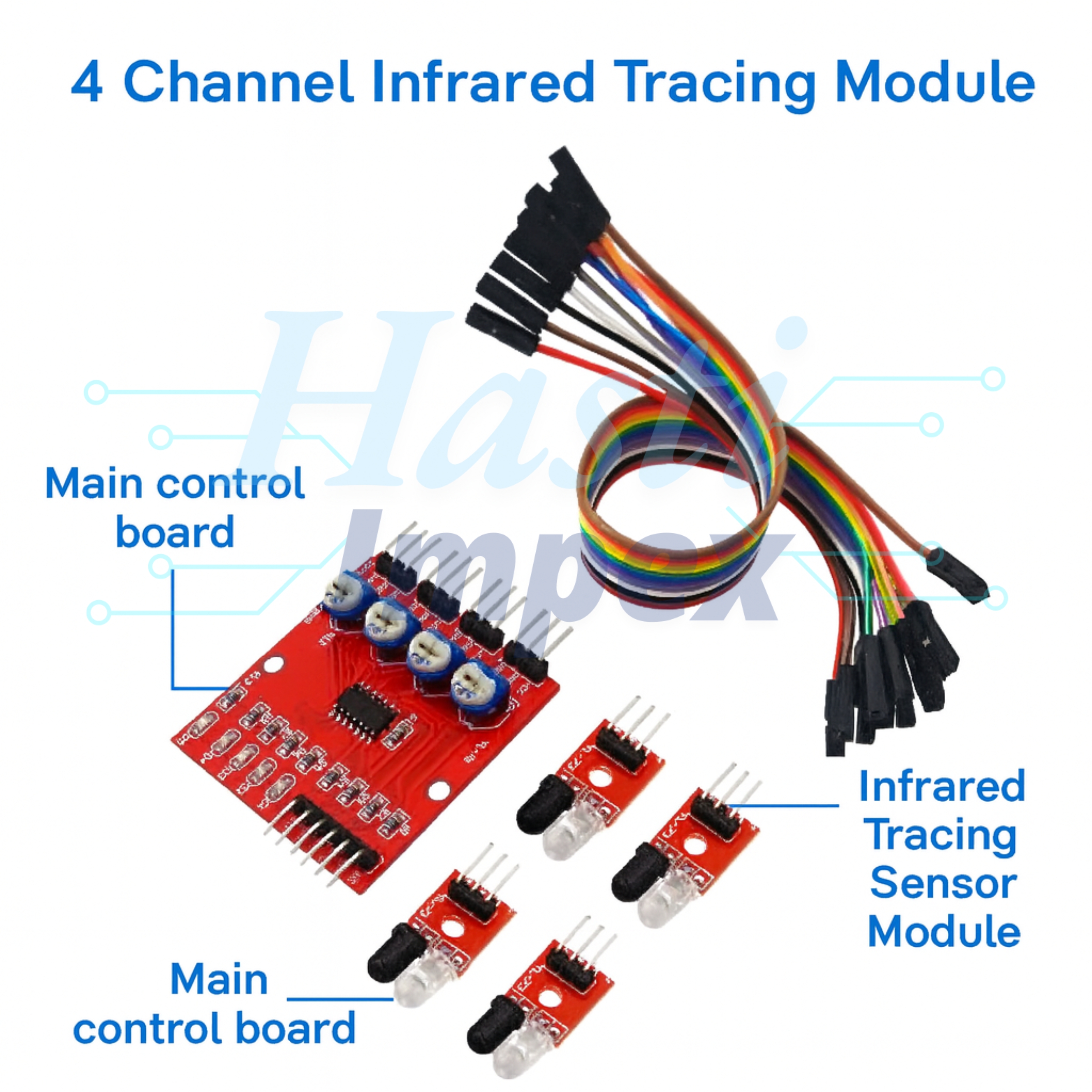

4 Channel Infrared Tracing Module
Description:
4-Channel Infrared Tracing Module is a sensor board that uses infrared (IR) reflection to detect the presence or absence of a line beneath the sensor. It is most commonly used in line-following robots and path-tracking systems.module includes four IR transmitter-receiver pairs (one for each channel), which can detect the contrast between a dark line (e.g., black tape) and a lighter background (e.g., white floor).
Features:
1. 4 independent IR sensors for accurate line detection
2. Digital output for easy interfacing with microcontrollers
3. Onboard signal indicator LEDs for real-time status feedback
4. Plug-and-play design for Arduino, ESP32, or Raspberry Pi projects
5. Ideal for robot line tracking, edge detection, or position feedback
6. Lightweight, durable PCB design
Diagram:
Specifications:
| Operating Voltage | 3.3V – 5V DC |
| Current Consumption | < 100 mA |
| Output Type | Digital (typically 0 or 1 per channel) |
| Detection Distance | 0.1 cm to 0.5 cm |
| Sensor Type | Infrared Reflection |
| Channels | 4 |
| Module Size | 8 cm x 2 cm |
| Indicator LEDs | Onboard LEDs show signal status for each sensor |
| Interface Pins | VCC, GND, OUT1–OUT4 |
