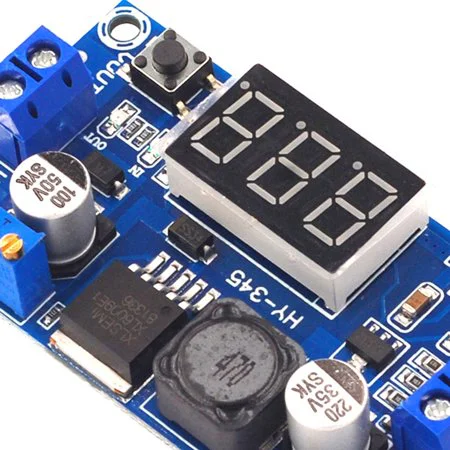

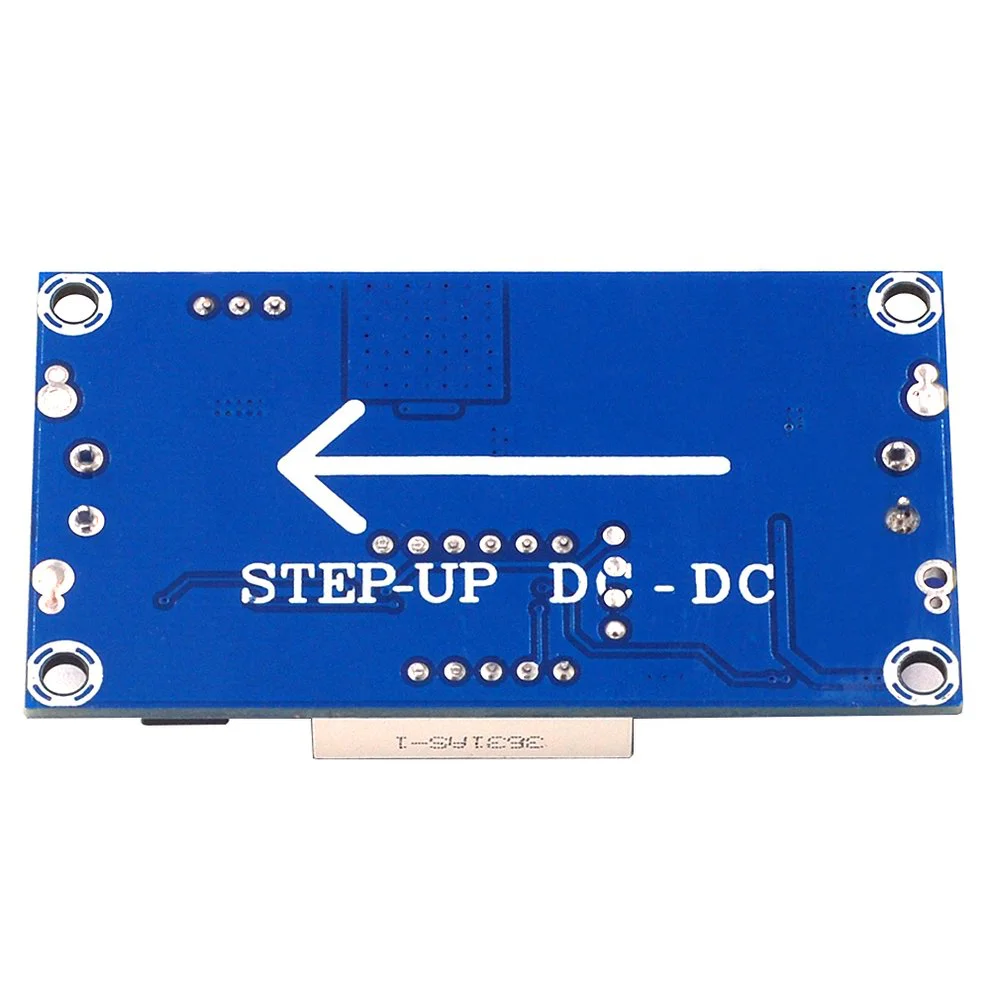

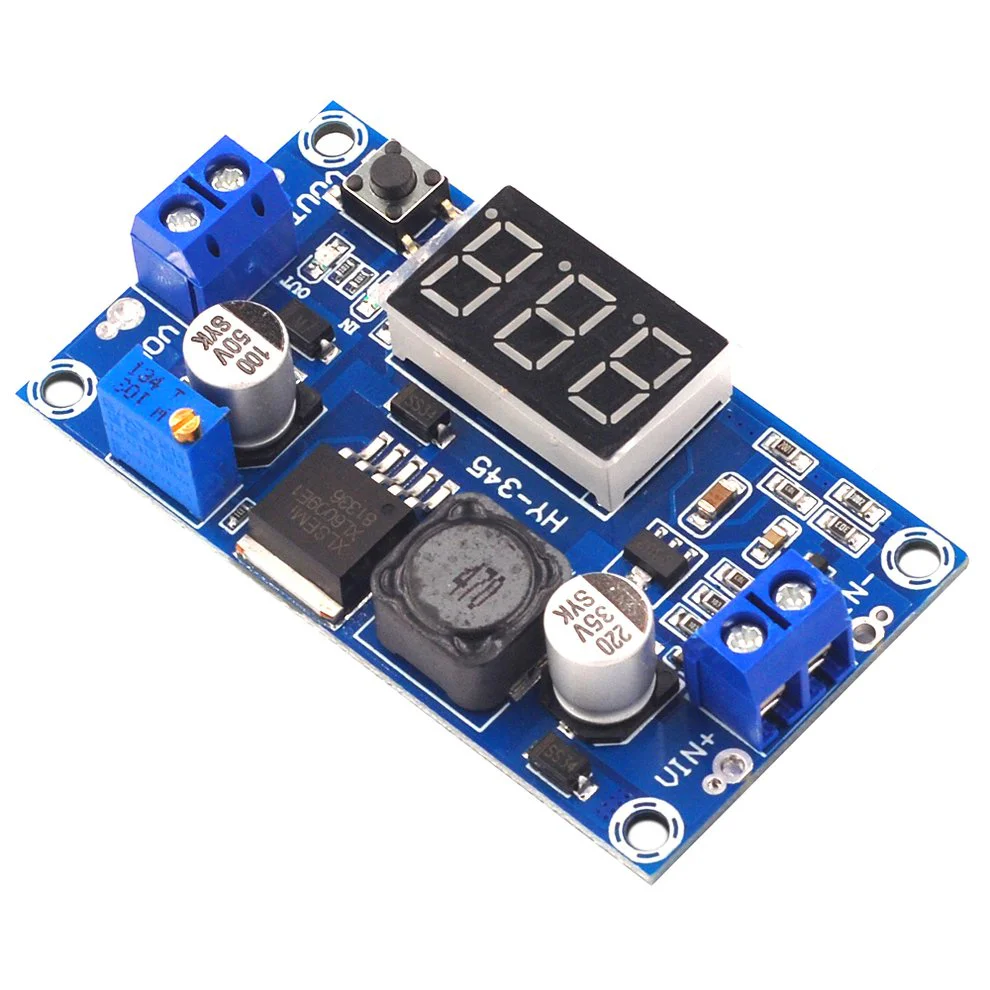

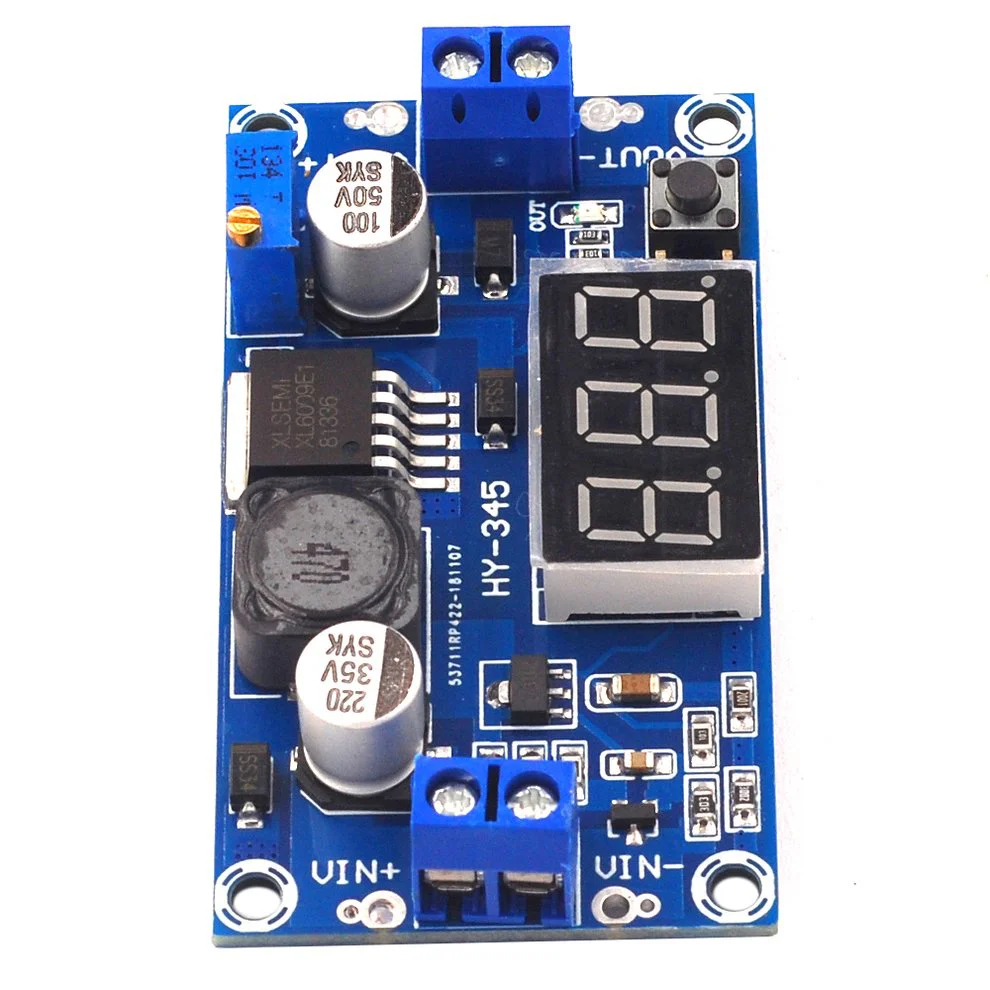

XL6009 Step Up Module with Display
Description:
XL6009 Step-Up (Boost) Converter Module with an integrated digital voltmeter display is a versatile DC-DC voltage regulator capable of increasing input voltages to higher, stable output voltages. It’s designed around the XL6009 chip, which is a high-performance 400 kHz 4A switch-mode boost regulator. This module is ideal for powering devices from lower-voltage power sources, such as batteries or USB supplies, where higher voltages are required.
Features:
1. Boost Converter Functionality
2. Digital LED Voltmeter Display
3. Adjustable Output Voltage
4. High Output Current
5. High Efficiency
6. Heat Dissipation
7. Wide Voltage Range
8. LED Indicator
9. Protection Notes
10. Compact Size

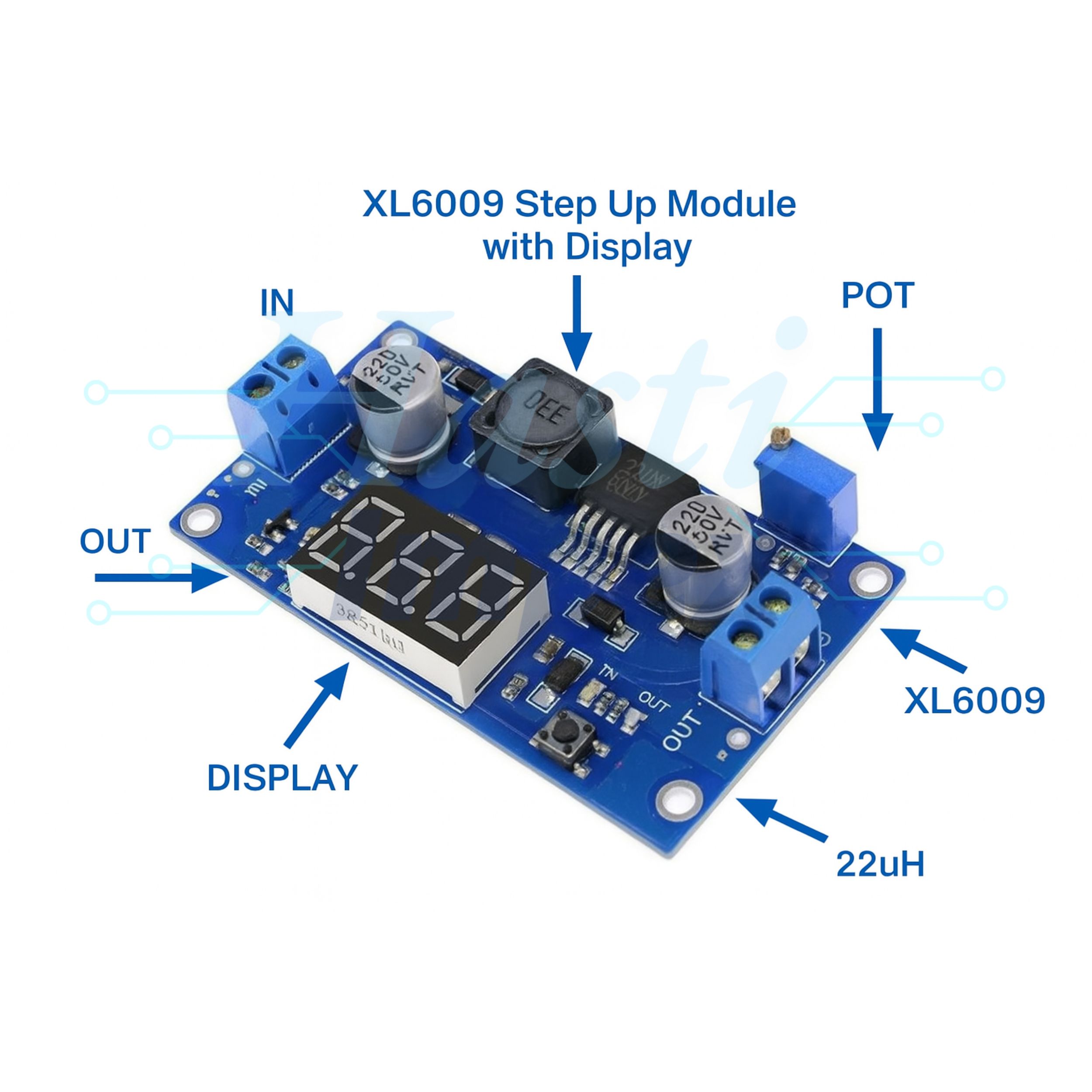

Diagram:
Specifications:
| Chipset | XL6009 |
| Module Type | Boost (Step-Up) DC-DC Converter |
| Input Voltage Range | 3V to 32V DC |
| Output Voltage Range | 5V to 35V DC |
| Conversion Efficiency | Up to 94% |
| Switching Frequency | 400 kHz |
| Display Accuracy | ±0.1V (approx.) |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 48mm × 25mm × 14mm |
