5A 12V Overcurrent Protection AC Current Detection Sensor Module
Description:
5A 12V Overcurrent Protection AC Current Detection Sensor Module is a specialized electronic module designed to detect and protect electrical devices from overcurrent conditions in AC circuits. This module continuously monitors the current flowing through the load and automatically disconnects the output if the current exceeds a pre-set threshold. It ensures safety, prevents damage to sensitive electronic components, and enhances the lifespan of devices connected to the circuit.
Features:
1. Overcurrent detection and protection for AC loads
2. Supports load current up to 5A
3. Adjustable overcurrent detection threshold
4. Uses current transformer (CT) for non-contact current sensing
5. Relay-based output control for safe switching
6. LED indicator for power and overcurrent status
7. Automatic disconnection upon overcurrent detection
8. Easy to interface with microcontrollers or standalone operation
9. 12V operating voltage for easy integration
10. Compact design for panel or project mounting

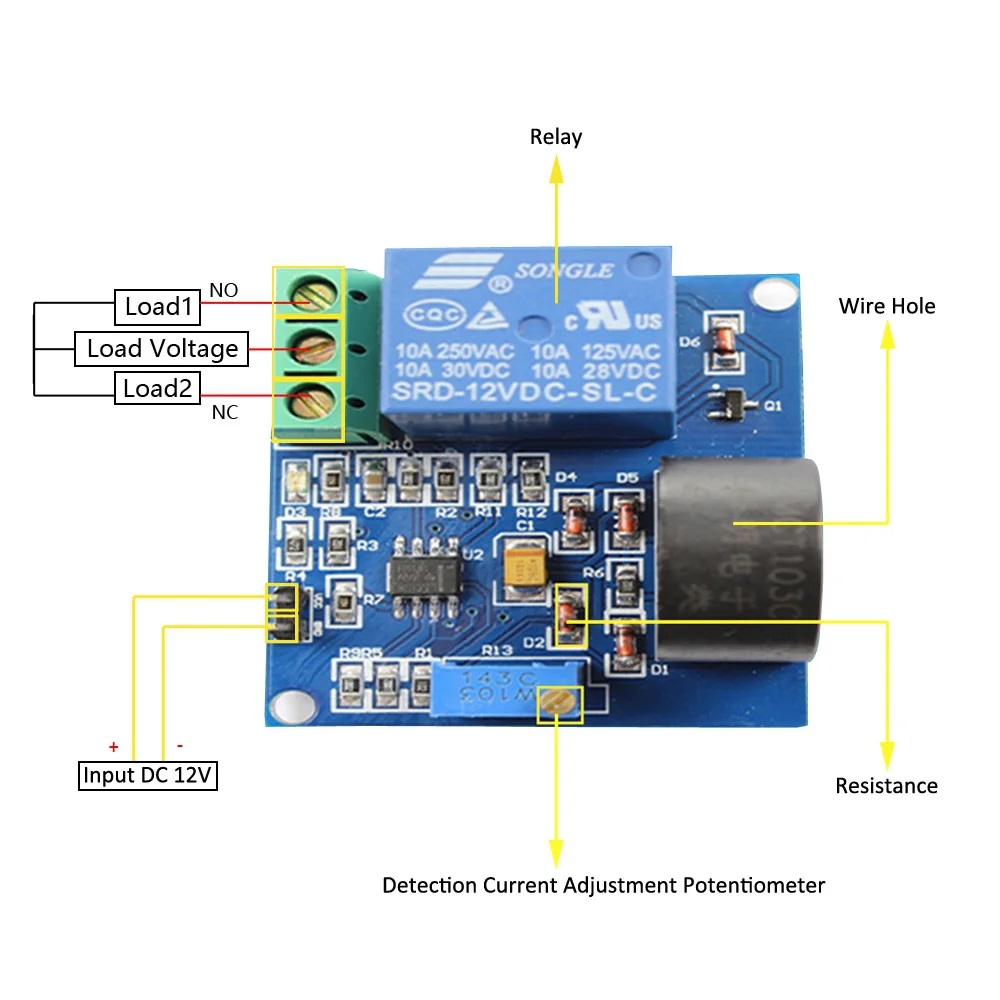

Diagram:
Specifications:
| Operating Voltage | 12V DC |
| Maximum Load Curren | 5A AC |
| Current Detection Method | Non-invasive Current Transformer (CT Sensor) |
| Output Type | Relay or MOSFET Switching |
| Power Indicator | Power Indicator |
| Overcurrent Indicator | LED Indicator (Overcurrent Status) |
| Operating Temperature Range | -20°C to +70°C |
| Dimensions | 55mm x 32mm x 18mm |
