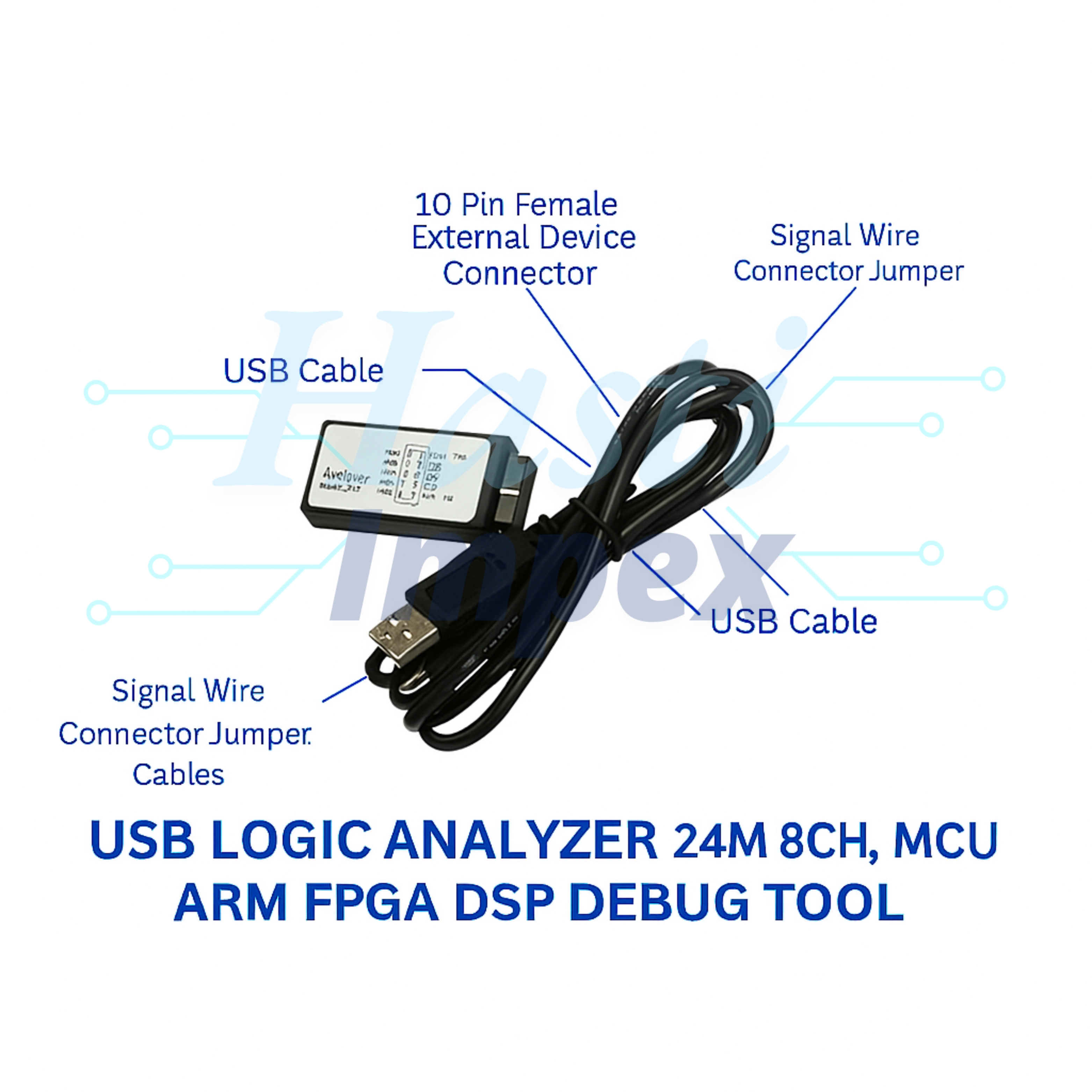

USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP Debug Tool
Description:
USB Logic Analyzer 24M 8CH is an advanced debugging tool designed for MCU, ARM, FPGA, and DSP systems. It provides high-precision signal analysis and is primarily used for debugging, testing, and verifying the performance of digital circuits, microcontrollers, and embedded systems. With 24MHz sampling speed and 8 channels, this logic analyzer is capable of capturing and analyzing complex digital signals and communication protocols at high speeds. It offers a great solution for embedded systems developers, engineers, and hobbyists who need to troubleshoot and optimize their designs.
Features:
1. 8 Channels
2. 24MHz Sampling Rate
3. High-Resolution Capture
4. USB Connectivity
5. Multiple Protocol Support
6. Powerful Software for Analysis
7. Compact and Portable
8. Triggering and Filtering
9. Real-Time Data Streaming
10. Affordable and Accessible
Diagram:
Specifications:
| Channels | 8 digital |
| Sampling Rate | 24 MH |
| Resolution | 8-bit |
| Input Voltage | 0V to 5V |
| Interface | USB 2.0 |
| Protocol Support | I2C, SPI, UART, CAN |
| Operating Temperature | 0°C to 70°C |
| Maximum Input Voltage | 5V |
