Mini 360 Step Down Buck Converter Power Supply Module
Description:
Mini 360 Step-Down Buck Converter is an ultra-compact and efficient DC-DC voltage regulator module capable of converting input voltages from 4.75V to 23V down to a stable, adjustable output voltage between 1V and 17V. With a peak efficiency of up to 96%, this module is perfect for Arduino, Raspberry Pi, ESP32, portable devices, battery projects, and embedded electronics where space and power savings are critical.
Features:
1. Wide Input Range
2. Adjustable Output Voltage
3. High Efficiency
4. Ultra Compact Size
5. High Switching Frequency
6. Decent Output Capacity
7. Precision Tuning
8. Easy Integration
9. Ideal for Prototyping & DIY
10. Eco-Friendly Design

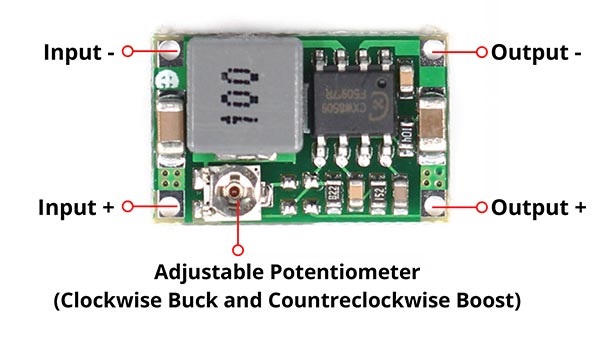

Diagram:
Specifications:
| Input Voltage Range | 4.75V to 23V DC |
| Output Voltage Range | 1V to 17V |
| Efficiency | Up to 96% |
| Switching Frequency | ~1.2 MHz |
| Output Ripple | ≤30mV |

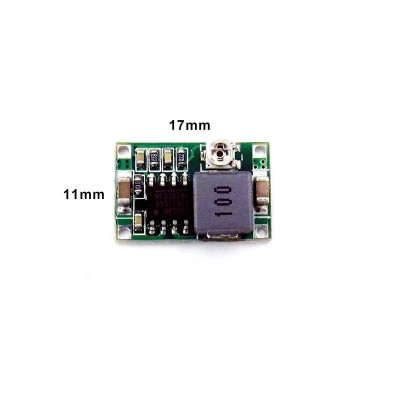

| Size | 17mm × 11mm × 3.8mm |
| Weight | ~1.5g |
