L293D Motor Driver Shield for Arduino
Description:
L293D Motor Driver Shield for Arduino is a compact and powerful module designed to allow easy control of motors with an Arduino board. It features a dual H-Bridge motor driver, which makes it perfect for driving two DC motors or a stepper motor in forward and reverse directions. The shield integrates seamlessly with your Arduino setup, providing an efficient solution for controlling motors in robotics, automated systems, and various other motor-driven projects.
Features:
1. Dual H-Bridge Motor Driver
2. Integrated with Arduino
3. Motor Power Supply
4. Motor Speed Control
5. Overcurrent Protection
6. Full and Half Bridge Configurations
7. Easy Motor Connections
8. Compatible with Various Motor Types
9. Indicator LEDs
10. Compact Design
11. Versatile Applications

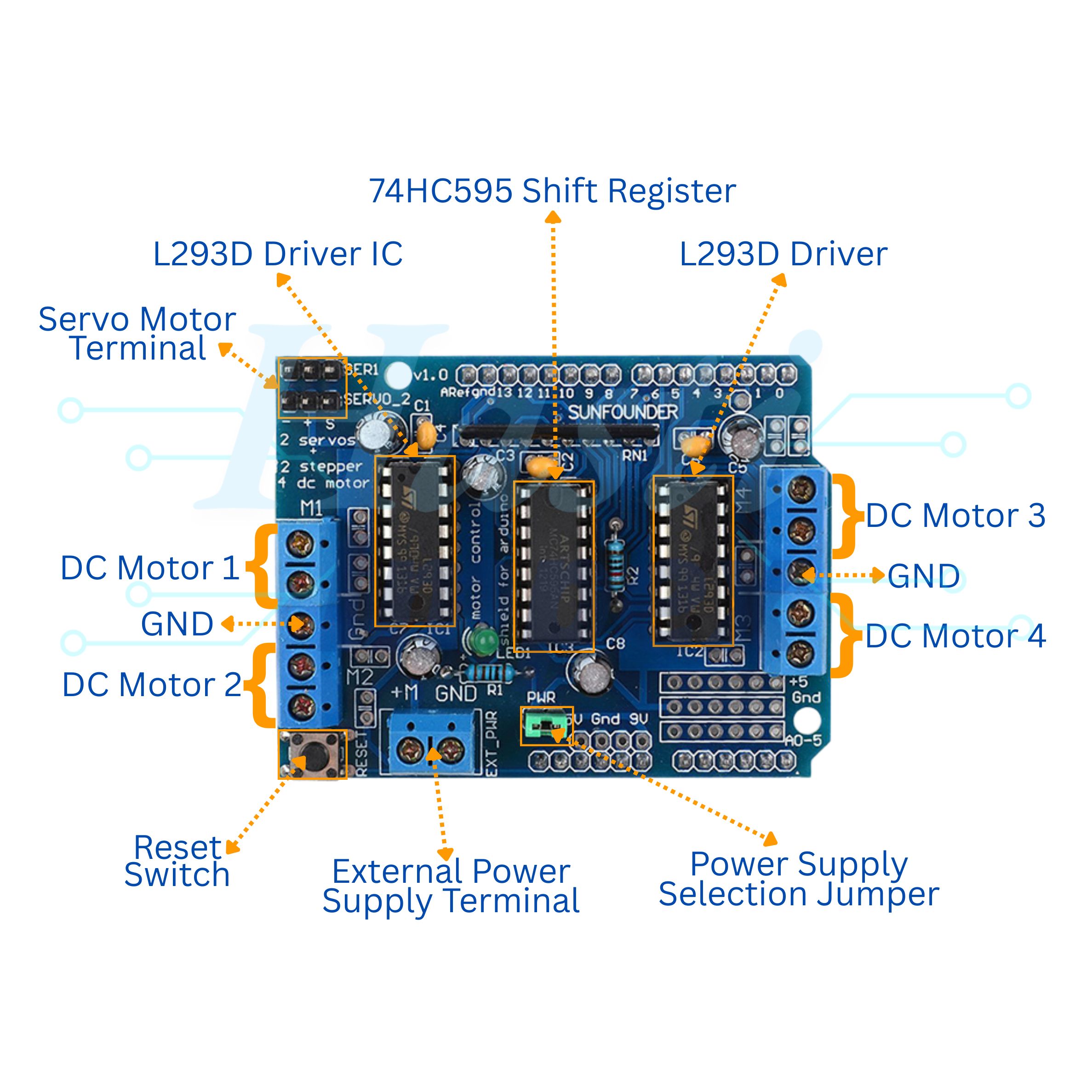

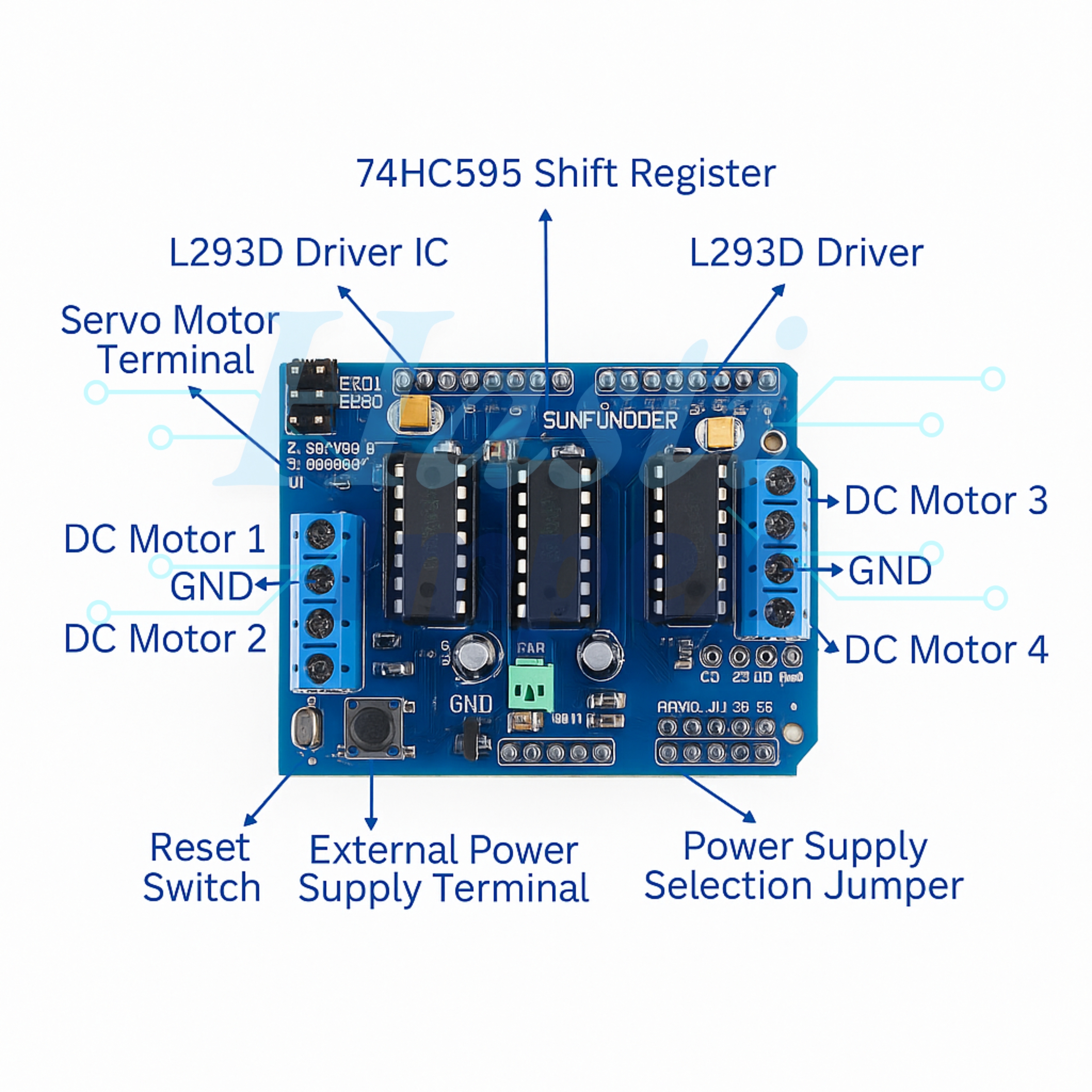

Diagram:
Specifications:
| Motor Channels | 2 motors |
| Output Voltage Range | 4.5V to 36V |
| Continuous current | 600mA |
| Peak current | 1.2A per |
| Motor Voltage | 4.5V to 36V, |
| Logic Voltage | 5V |
| Current Handling | 600mA |
| Size | 60mm x 70mm x 15mm |
| Weight | 20-30g |
