Tower Pro MG90S Metal Gear Servo Motor (180 Degree Rotation)

Description:

Tower Pro MG90S Metal Gear Servo Motor is a compact, high-performance servo renowned for its durability and precision. Featuring a 180-degree rotation range and robust metal gears, it is ideal for applications requiring reliable and smooth motion, such as RC vehicles, drones, and robotic joints.

Features:

1. Metal Gear Construction

2. 180° Rotation Angle

3. High Torque Output

4. Fast Speed Response

5. Operating Voltage

6. Compact and Lightweight Design

7. Dual Ball Bearings

8. Control System

9. 3-Wire Standard JR Connector

10 .Wide Application Range

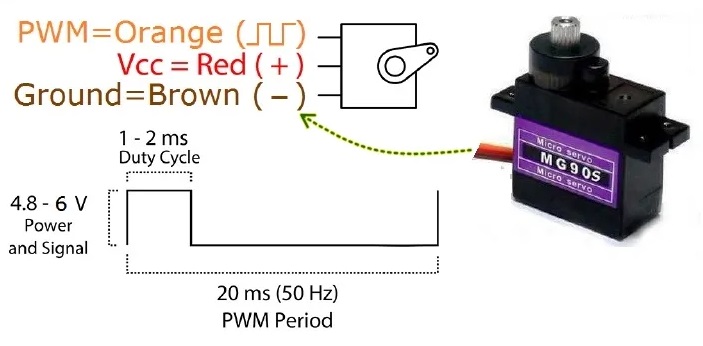

Diagram:

Specifications:

Model Tower Pro MG90S
Type Micro Servo Motor
Gear Type Metal Gears
Rotation Angle 180°
Operating Voltage 4.8V to 6.0V
Stall Torque 2.2 kg·cm @ 4.8V / 2.5 kg·cm @ 6.0V
Pulse Width Range 500 – 2400 µs
Pulse Cycle 20 ms
Bearings Dual Ball Bearings
Wire Colors Brown (GND), Red (+V), Orange (Signal)
Temperature Range -30°C to +60°C
Material Metal gears, plastic housing
Dimensions 23.1 x 12.2 x 29.0 mm
Weight 14 g
