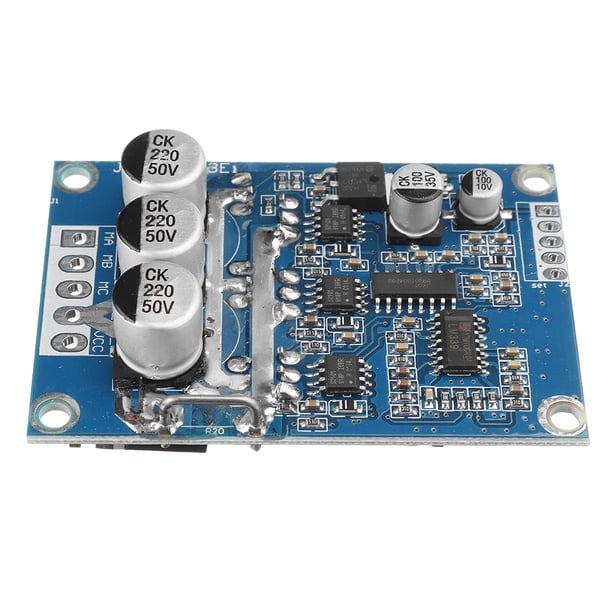

Brushless Motor Speed Controller Hall BLDC Driver Board DC 12V to 36V 15A 500W
Description:
Hall Sensor BLDC Motor Driver Board is a high-performance Brushless DC (BLDC) motor controller designed to efficiently drive three-phase brushless motors using Hall effect feedback. Supporting a wide voltage range from 12V to 36V DC and delivering up to 15A current (peak power up to 500W), this controller is perfect for a range of medium-power applications including electric bikes, scooters, drones, fans, pumps, and robotic drives.
Features:
1.Wide Input Voltage
2. High Current Output
3. Hall Sensor Feedback
4. Speed Control
5. Multifunction Control Pins
6. Overcurrent & Overheat Protection
7. Efficient Drive Circuitry
8. Compact Size

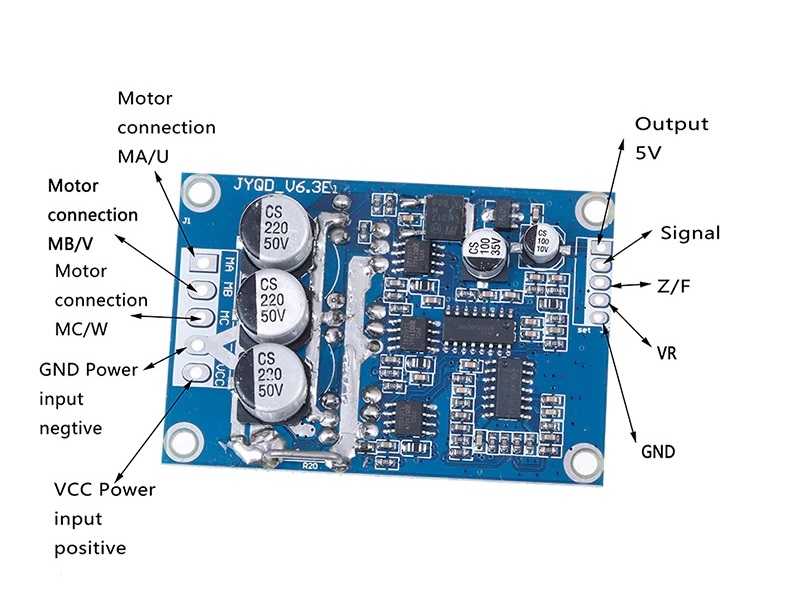

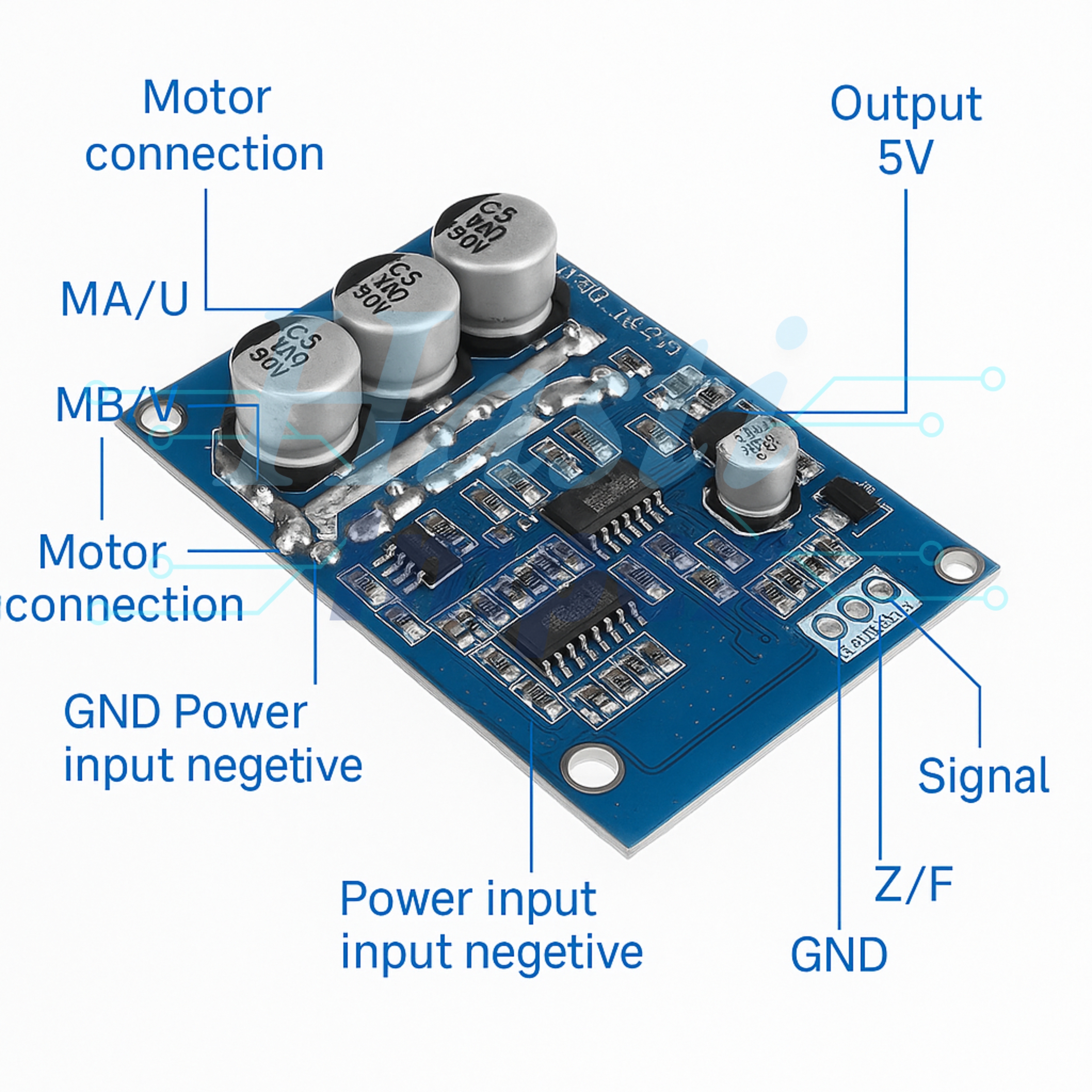

Diagram:
Specifications:
| Motor Type | 3-Phase BLDC |
| Operating Voltage | DC 12V–36V |
| Rated Current | 15A |
| Peak Power | 500W |
| Control Type | Hall sensor + speed potentiometer |
| Efficiency | >90% |
| Dimensions | ~70mm x 50mm x 20mm |
