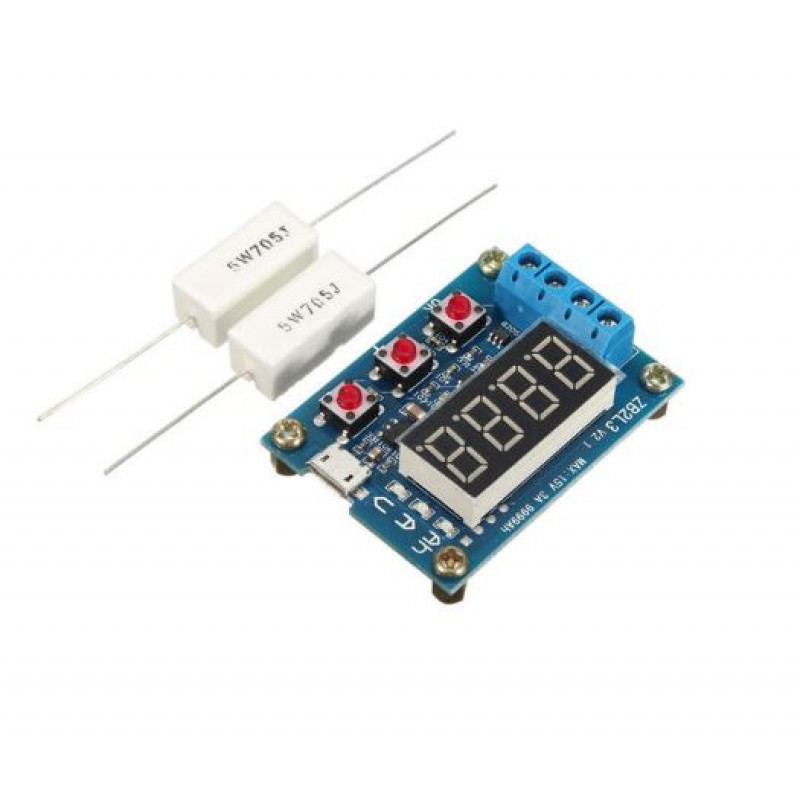

ZB2L3 18650 Li-ion Lithium Battery Capacity Tester
Description:
ZB2L3 Battery Capacity Tester is a specialized electronic load tester used to measure the actual capacity of lithium-ion batteries, especially 18650 cells, though it also supports other battery types. It’s an affordable and practical tool for hobbyists, engineers, and battery enthusiasts who want to verify the real capacity (mAh) of rechargeable batteries instead of relying on potentially inflated manufacturer ratings.
Features:
1. Real Capacity Measurement
2. Wide Voltage Range
3. LCD Display
4. User-Defined Cutoff Voltage
5. High Accuracy
6. External Load Compatible
7. Automatic Stop
8. Compact Design
9. Reverse Polarity Protection
10. Multiple Battery Support

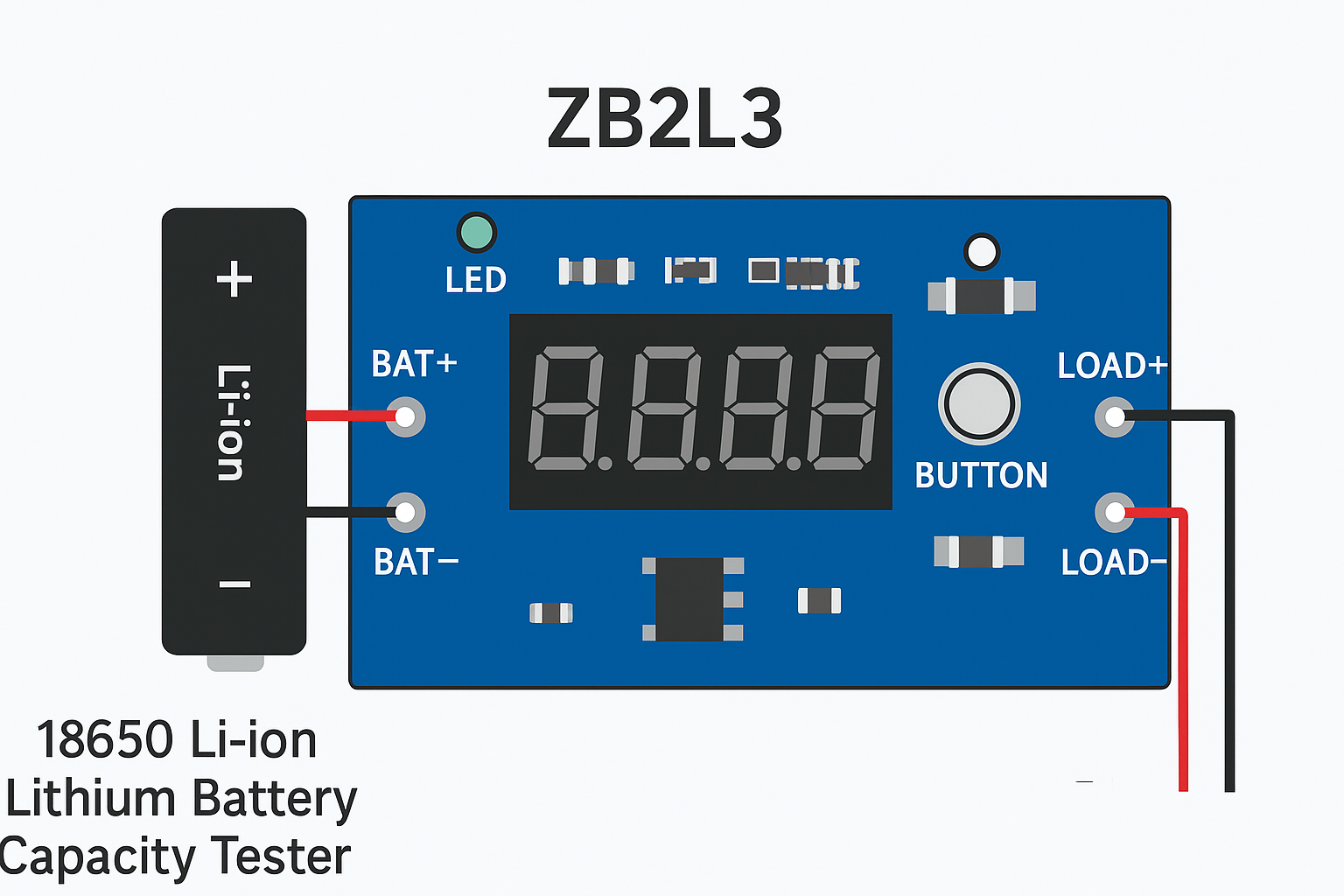

Diagram:
Specifications:
| Model | ZB2L3 |
| Input Voltage Range | 3.7V – 15V |
| Test Voltage Range | 1V – 15V |
| Voltage Display Accuracy | ±0.01V |
| Capacity Accuracy | ±1% |
| Operating Temperature | -10°C to +50°C |
| Display Type | 4-digit LCD |
