TP4056 1A Li-ion lithium Battery Charging Module With Current Protection - Type C
Description:

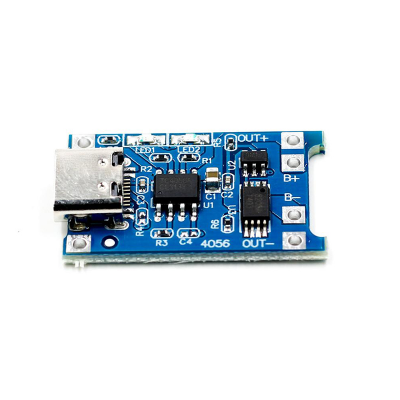

TP4056 1A Li-Ion Lithium Battery Charging Module with Type-C interface is a highly efficient, compact charging solution specifically designed for single-cell 3.7V lithium-ion and lithium-polymer batteries. This module combines the reliable TP4056 charging controller with a Type-C USB input, making it more compatible with modern devices and chargers that use USB-C connections.
Features:
1. Type-C USB Input
2. Integrated Protection Circuit
3. High Charging Current
4. Constant Current / Constant Voltage (CC/CV) Charging
5. Dual LED Indicators
6. Precision Voltage Regulation
7. Automatic Charging Control
8. Compact Size and Lightweight
9. Trickle Charging Function
10. Wide Range of Applications

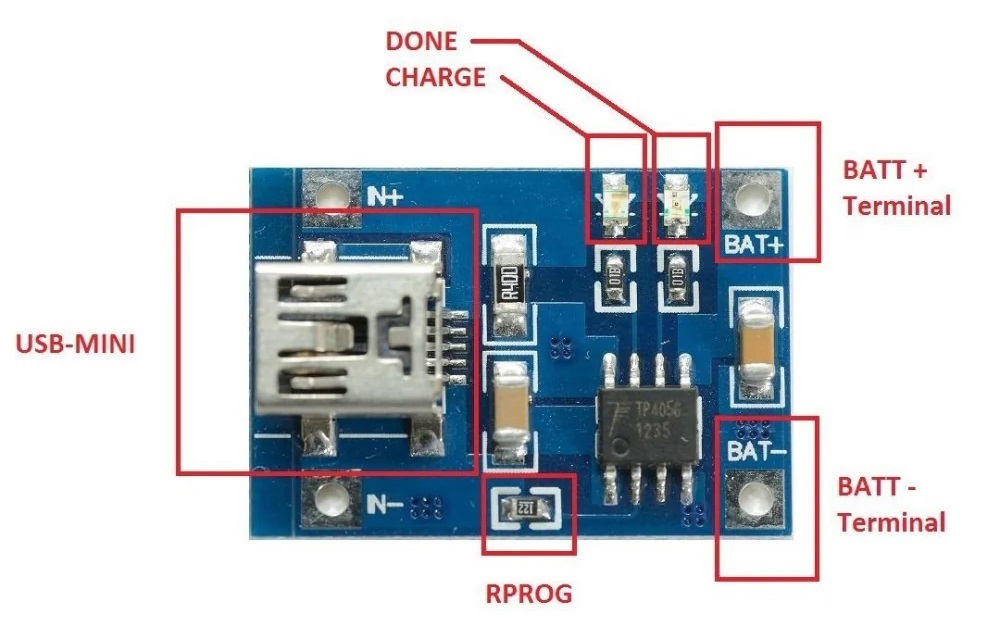

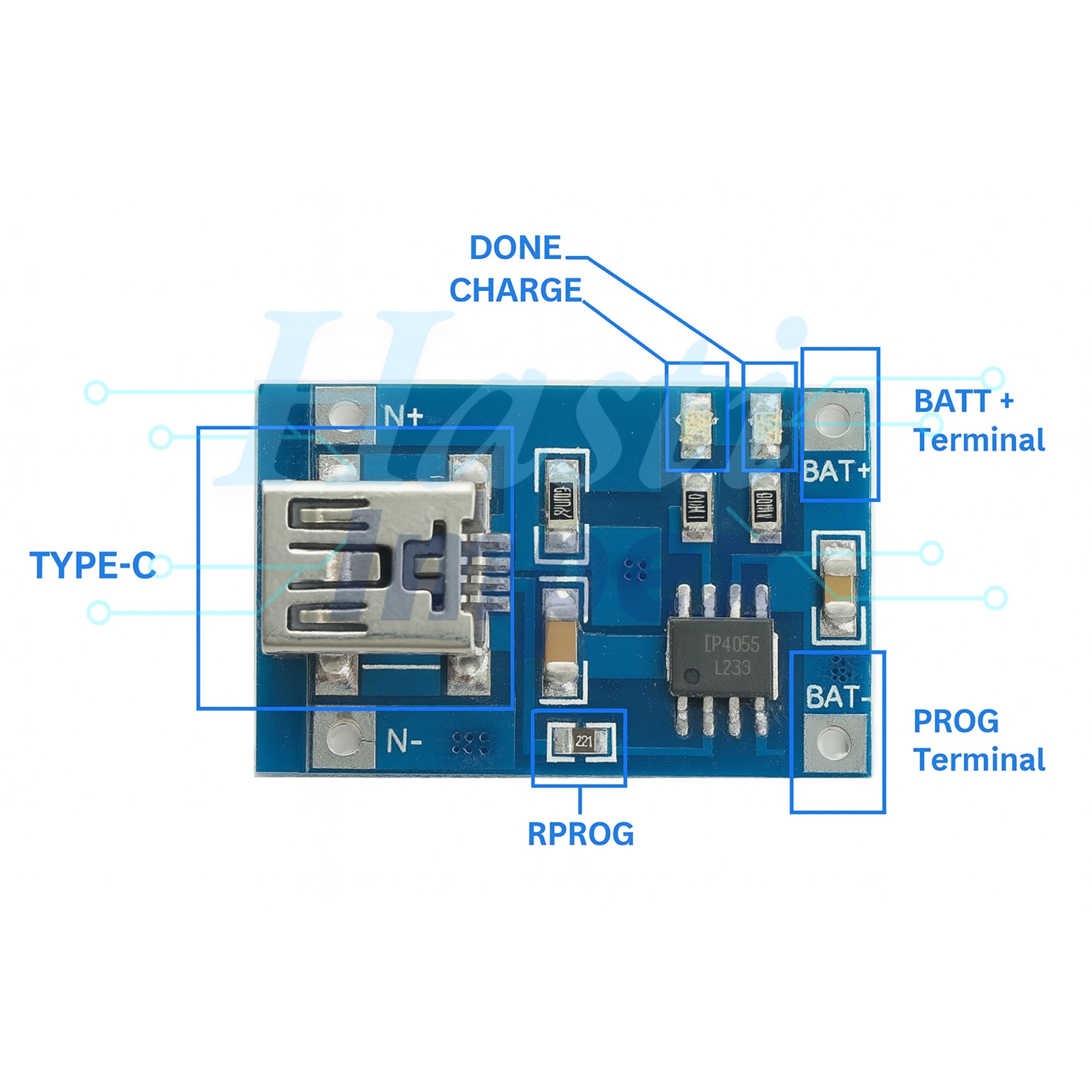

Diagram:
Specifications:
| Module Name | TP4056 1A |
| Input Voltage | 4.5V – 5.5V DC |
| Charging Voltage | 4.2V ± 1% |
| Maximum Charging Current | 1A |
| Charge Termination Current | ~100mA |
| LED Indicators | Red LED (charging), Blue/Green LED |
| Operating Temperature | -10°C to +85°C |
| Dimensions | 25mm × 19mm × 1mm |
| Weight | ~3g |
