XH-M601 12V Battery Charging Control Board Intelligent Charger Power Control Panel Automatic Charging Power Module
Description:
XH-M601 is an automatic charging controller designed for 12V lead-acid batteries. It monitors battery voltage in real time and uses a relay to start or stop charging based on user-defined upper and lower voltage limits, preventing overcharging and extending battery life. Ideal for solar setups, battery backups, and DIY power systems.
Features:
1. Automatic Charging Control
2. Wide Compatibility
3. Adjustable Voltage Range
4. Relay-Based Switching
5. LED Indicators
6. Intelligent Protection
7. Simple Installation
8. Ideal for Automation
9. Low Standby Power Consumption
10. Compact Form Factor

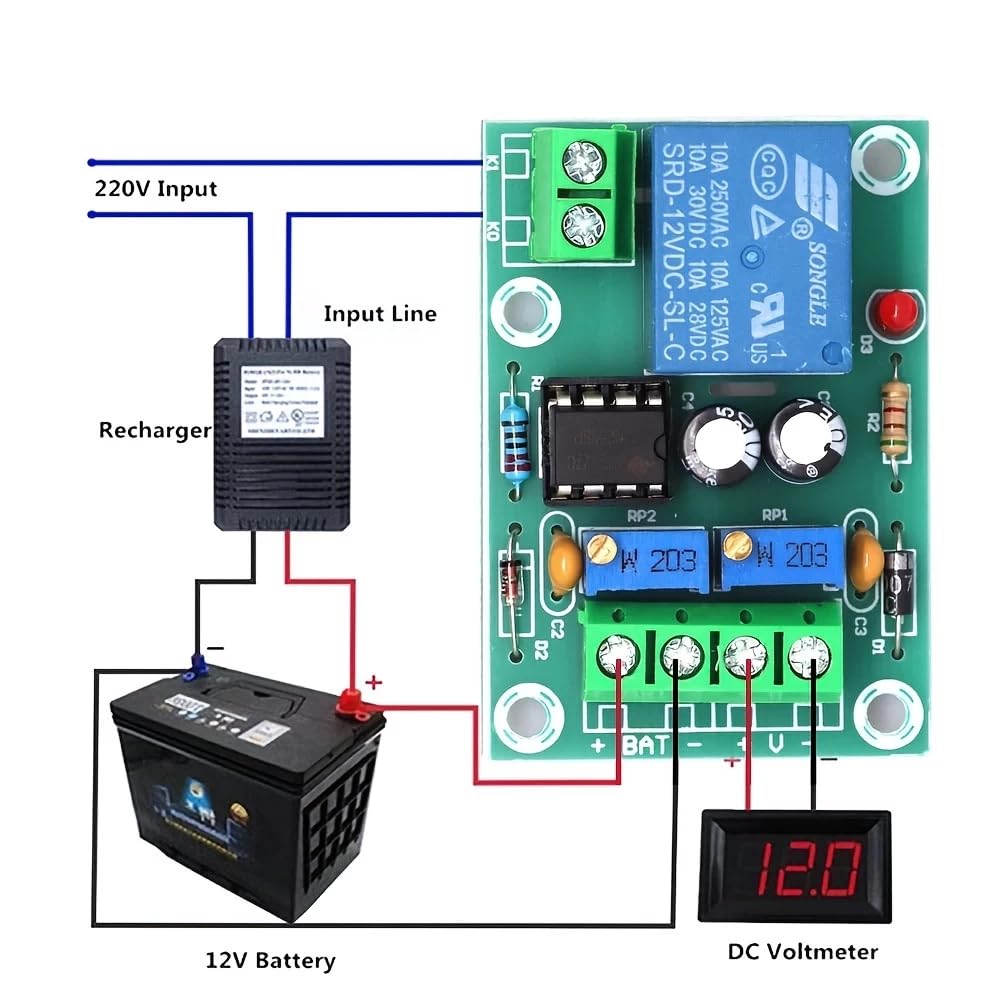

Diagram:
Specifications:
| Product Name | XH-M601 Battery Charging Control Module |
| Input Voltage | DC 12V |
| Control Voltage Range | 10.5V – 14V |
| Relay Type | Electromechanical Relay |
| Relay Contact Rating | 10A @ 250V AC or 10A @ 30V DC |
| Control Accuracy | ±0.1V |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 65mm × 38mm × 17mm |
