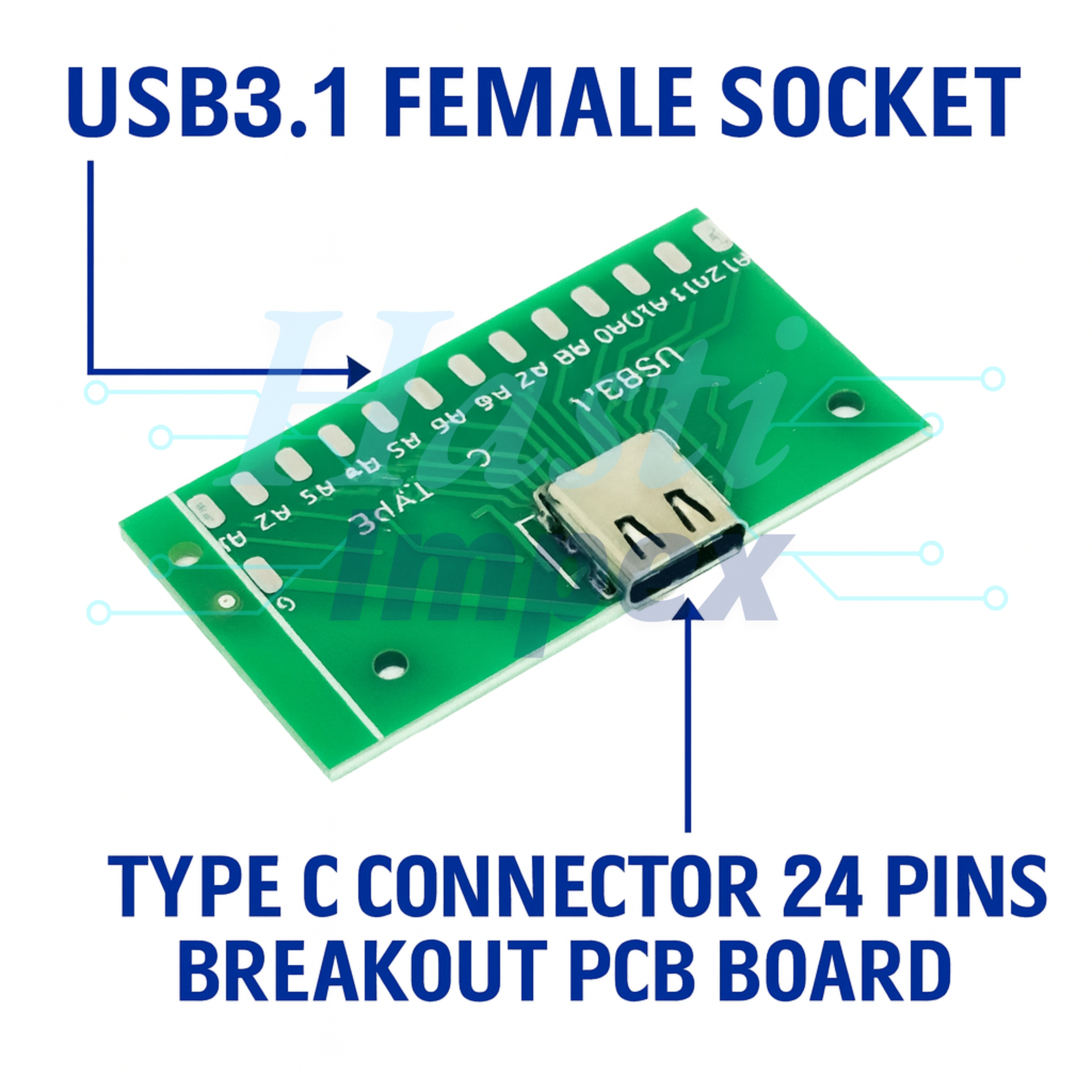

USB 3.1 Female Socket Type C Connector 24 Pins Breakout PCB Board
Description:
USB 3.1 Female Socket Type C Connector 24 Pins Breakout PCB Board is an essential tool for electronics enthusiasts, makers, and developers who want to integrate USB Type-C functionality into their custom projects. This breakout board provides easy access to all 24 pins of the USB Type-C connector, enabling you to experiment, prototype, and design devices that make use of the latest USB 3.1 Type-C standard.Type-C connector offers a high-speed data transfer rate, a reversible design for ease of use, and compatibility with a wide range of modern devices, including smartphones, laptops, and power banks. This breakout board simplifies the process of working with USB Type-C connections by providing clear pinouts and a convenient form factor for prototyping
Features:
1. USB 3.1 Type-C Compatibility:
2. 24-Pin Breakout Layout
3. Reversible Type-C Connector
4. Compact and Easy to Integrate
5. High-Quality Solder Pads
6.Durable and Reliable PCB
7. Multiple Applications
8. Versatile Power Delivery (PD)
9. Clear Pinout and Labels
Diagram:
Specifications:
| Connector Type | USB 3.1 Type-C Female Socket (24 pins) |
| Pin Count | 24 pins |
| Power Delivery | 100W |
| PCB Material | High-quality FR4 PCB |
| Board Dimensions | Approx. 30mm x 20mm |
| Operating Voltage | 5V, 9V, 15V, 20V |
| Temperature Range | -40°C to 85°C |
| Weight | 5-10 grams |
| Color | green |
