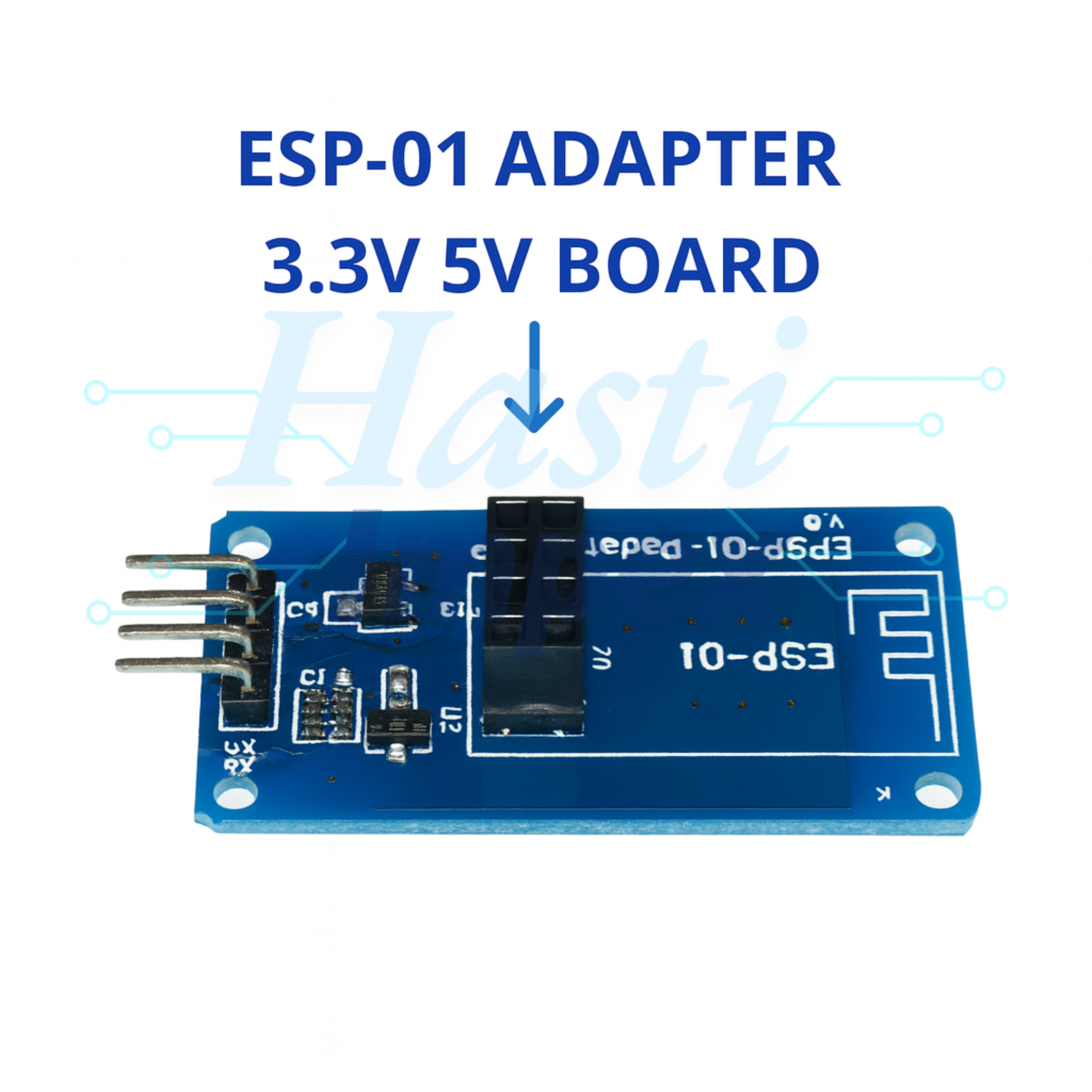

ESP-01 Adapter 3.3V 5V Board
Description:
ESP-01 Adapter Board is an essential development tool for interfacing the ESP-01 Wi-Fi module with other electronic components and microcontrollers. The ESP-01 module, which is part of the ESP8266 family, is a low-cost and highly popular Wi-Fi module used in various Internet of Things (IoT) applications. However, the ESP-01 operates at 3.3V and requires a specific power supply and programming interface to function properly. The ESP-01 Adapter Board solves this by providing easy connections, voltage regulation, and other necessary functions to ensure smooth operation of the ESP-01 module.
Features:
1. Power Supply Flexibility (3.3V/5V)
2. Easy Interface with Microcontrollers
3. Onboard Voltage Regulator
4. Serial Communication for Programming
5. LED Indicators
6. Reset and Flash Pins
7. Breadboard Compatibility
8. Compact and Low-Cost Design
9. Wide Range of Applications
Diagram:
Specifications:
| Module Supported | ESP-01 Wi-Fi Module |
| Input Voltage | 3.3V or 5V (via USB or external power supply) |
| Voltage Regulator | 3.3V built-in voltage regulator for stable operation |
| Communication Interface | Serial (TX/RX) for programming and communication |
| Programming Pins | Flash, Reset, GPIO pins, TX/RX pins |
| LED Indicators | Power and status LEDs for Wi-Fi connection |
| Breadboard Compatibility | Yes |
| Dimensions | 30mm x 20mm |
| Operating Temperature | 0°C to 70°C |
