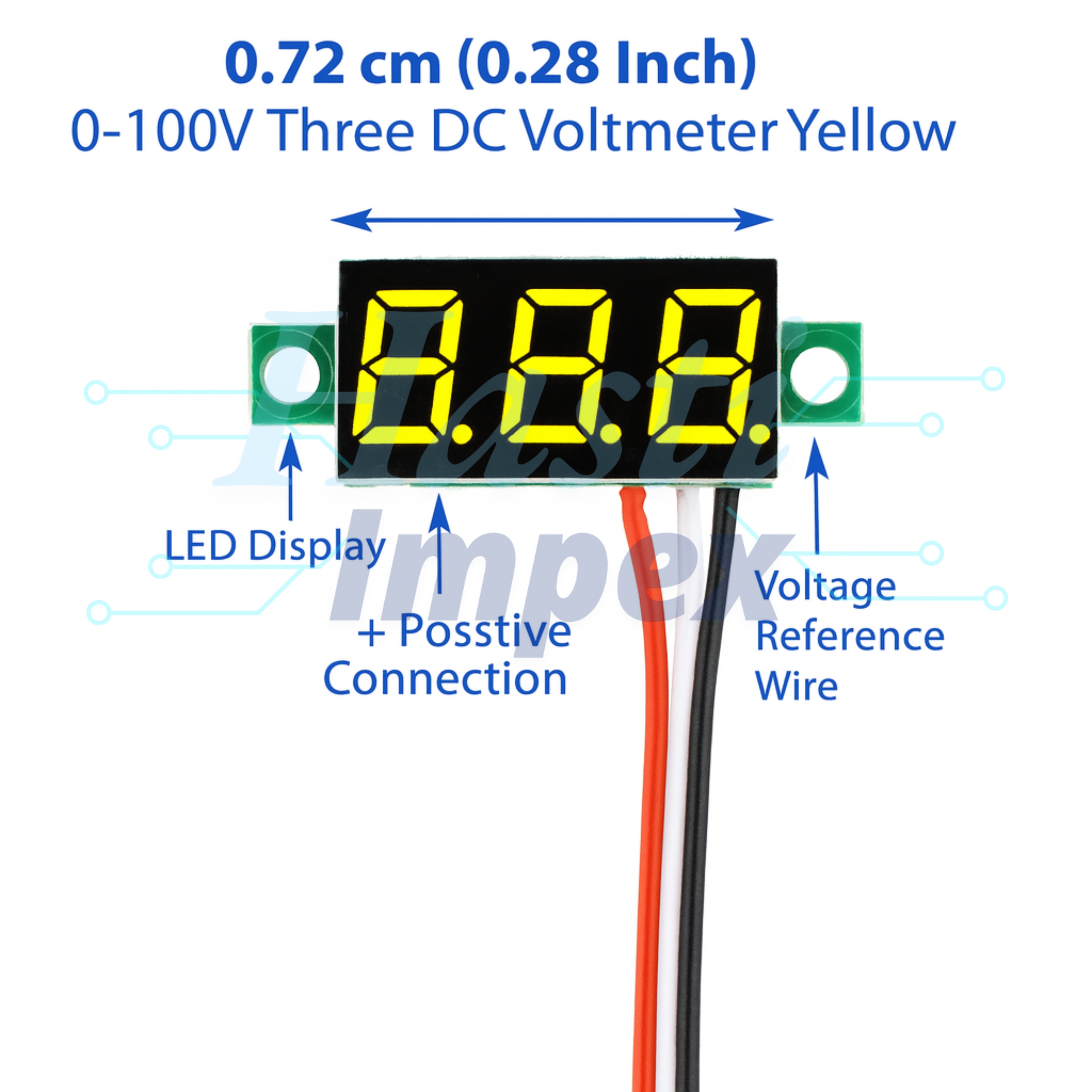

0.72 cm (0.28 inch) 0-100V Three Wire DC Voltmeter Yellow
Description:
0.72 cm (0.28 inch) 0-100V Three Wire DC Voltmeter in yellow is a compact and precise voltage measuring device engineered for DC circuits. Its striking yellow display, coupled with a diminutive size of 0.72 cm (0.28 inches) in diameter, makes it an excellent choice for projects requiring both accuracy and visual appeal. Voltmeter is adept at measuring voltages within the range of 0 to 100 volts, ensuring reliable readings for monitoring various DC power sources. Its three-wire configuration simplifies installation and guarantees consistent measurement accuracy.
Features:
1.Compact 0.28 inch (0.72 cm) 3-Digit LED Display
2. Bright Yellow Display for Clear Readability
3. Measures DC Voltages from 0V to 100V
4. Three-wire System for Independent Power & Measurement
5. Reverse Polarity Protection on Power Input
6. High Accuracy and Real-Time Voltage Display
7. Easy to Install and Lightweight
8. Low Power Consumption
9. Ideal for Industrial, Automotive, and Hobby Electronics

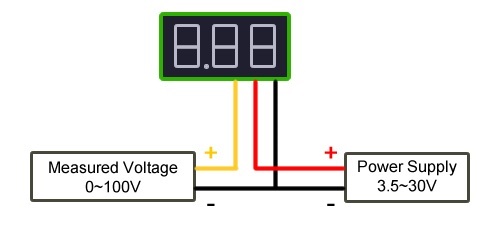

Diagram:
Specifications:
| Display Size | 0.28 inch / 0.72 cm |
| Display Type | 3-Digit LED |
| Display Color | Yellow |
| Measuring Voltage Range | 0V to 100V DC |
| Operating Voltage (Supply) | 4.5V to 30V DC |
| Minimum Measured Voltage | 0V |
| Resolution | 0.01V (Below 10V), 0.1V (Above 10V) |
| Accuracy | ±(1% + 1 Digit) |
| Refresh Rate | ~500ms / Reading |
| Operating Temperature | -10°C to +65°C |
| Dimensions (L x W x H) | 30mm x 11mm x 8mm |
| Weight | Approx. 4 grams |
