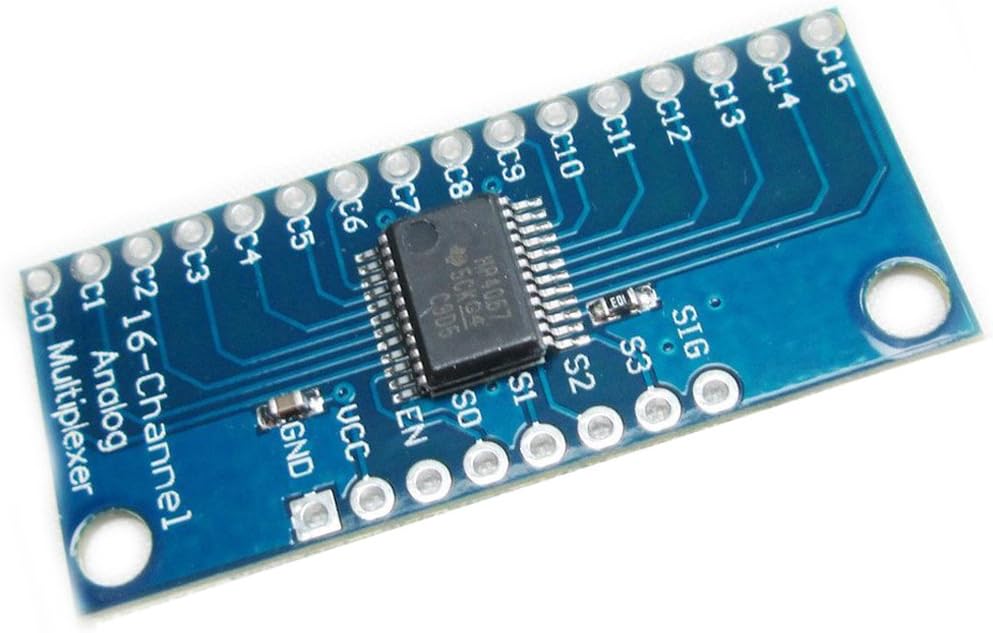

CD HC4067 16-Channel Multiplexer/Demultiplexer Module
Description:
CD HC4067 16-Channel Multiplexer/Demultiplexer Module is a highly versatile and compact solution for expanding the number of analog or digital input/output pins on your microcontroller, such as Arduino, ESP32, STM32, or Raspberry Pi. Based on the CD4067 IC, this module acts as a 16:1 multiplexer or 1:16 demultiplexer, enabling you to route one signal to/from up to 16 different channels using only 4 control pins.
Features:
1. 16-Channel Multiplexing
2. Bi-Directional Operation
3. Low ON Resistance (~70Ω)
4. Wide Operating Voltage
5. Simple Address Control
6. Compact & Breadboard-Friendly Design
7. Enable Pin

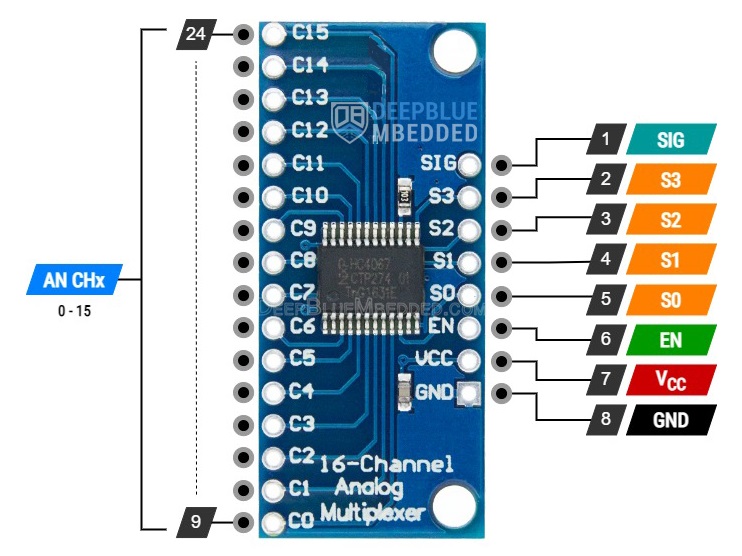

Diagram:
Specifications:
| IC | CD4067 |
| Channels | 16 |
| Control Pins | S0, S1, S2, S3 |
| Enable Pin | Active LOW |
| Operating Voltage | 2V – 6V |
| ON Resistance | ~70Ω |
| Current Handling | ±10mA per channel |
| Dimensions | ~42mm x 16mm |
